Mass Production
JSM2718AB38LEP3-L0

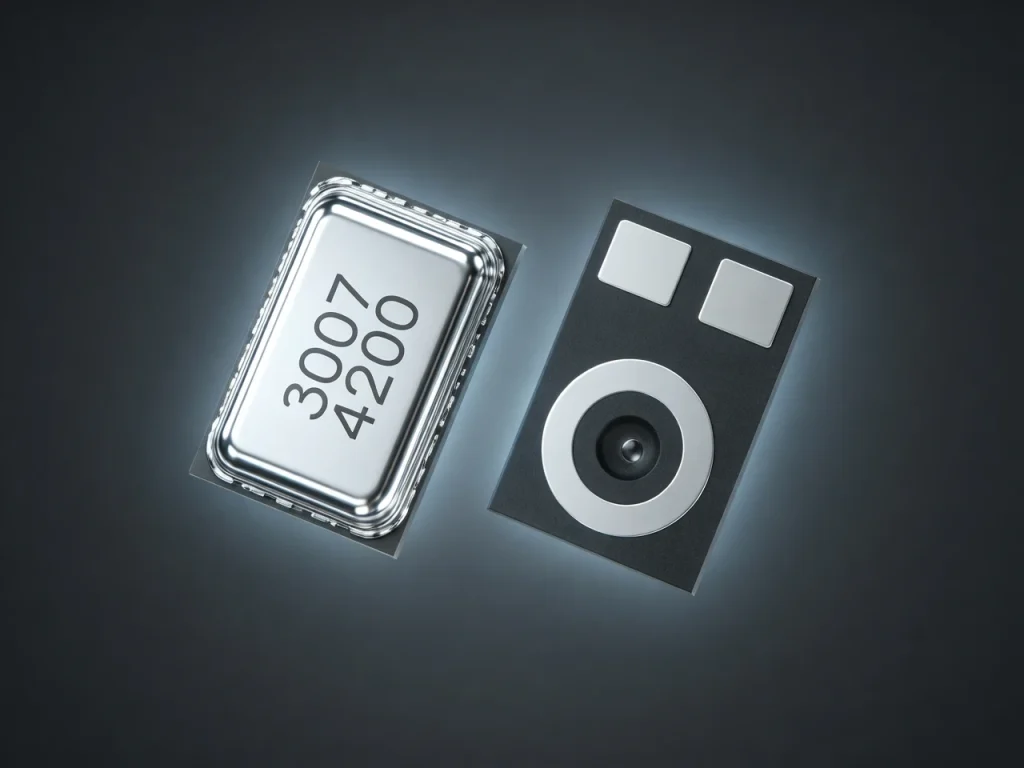

JSM2718AB38LEP3-L0 Analog MEMS Microphone
Omnidirectional bottom-ported analog MEMS microphone, L-series variant with 62dB SNR. Balanced performance for consumer electronics and IoT applications.
SNR
62dB(A)
Package
OCLGA
Output
Analog
IDD
125μA
Core Features
JSM2718AB38LEP3-L0 : Key Performance Indicators
Reliable Performance
62 dB(A) SNR with 126 dB SPL acoustic overload point
Wide Voltage
1.6–3.6 V operating range for flexible platform integration
Compact Package
OCLGA 2.75×1.85×0.90 mm, 3-pin configuration
Technical Parameters
JSM2718AB38LEP3-L0 Full Electrical Parameters
| Parameters | Value |
|---|---|
| Sensitivity | -38dBV |
| SNR | 62dB(A) |
| Max Sound Pressure Level (AOP) | 126dB SPLdB SPL |
| Operating Voltage (VDD) | 1.6-3.6V |
| Operating Current (IDD) | 125μA |
| Package Type | OCLGA |
| Package Size | 2.75×1.85×0.9mm |
| Output Type | Analog |
Application Scenarios
Typical End Applications
智能建筑
Building自动化、人员定位、HVAC风量监控
